Flush Hinges

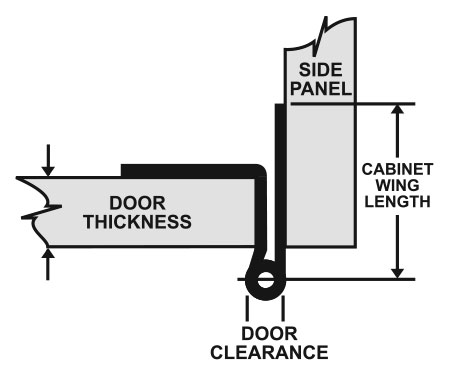

RPC flush hinges with hospital tips come in heights of 2”, 2-1/2” and 2-3/4”.

Part Number: 860

Door Thickness:	3/4” (19mm)
Door Clearance:	7/32” (5.6mm)
Cabinet Wing Length:	1-59/64” (48.8mm)
Barrel Height:	2-1/2” (63.5mm)
Gauge:	.083” (2.1mm)
Pack:	100/case, cell packed
	Specify finish when ordering.

Download Application Drawing

Part Number: 2107

Door Thickness:	13/16” (20.6mm)
Door Clearance:	1/4” (6.4mm)
Cabinet Wing Length:	2-3/16” (55.6mm)
Barrel Height:	2-3/4” (69.9mm)
Gauge:	.095” (2.4mm)
Pack:	100/case, cell packed
	Specify finish when ordering.

Download Application Drawing

Part Number: 8581

Door Thickness:	13/16” (20.6mm)
Door Clearance:	7/32” (5.6mm)
Cabinet Wing Length:	1-7/8” (47.6mm)
Barrel Height:	2” (50.8mm)
Gauge:	.083” (2.1mm)
Pack:	100/case, cell packed
	Specify finish when ordering.

Download Application Drawing

Flush | Lift-Off & 3 Leaf | Import Overlay | Screen & Pivot

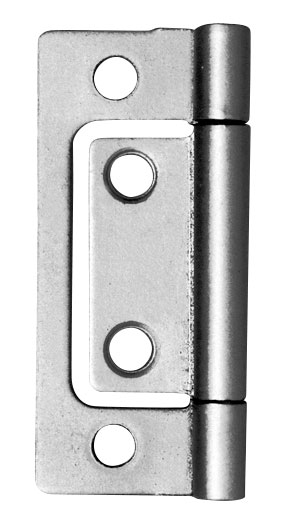

Lift-Off & Three Leaf Hinges

Part Number: H57-80450/H56-80450

Height:	2-1/8” (54mm)
Open Width:	1-9/16” (52mm)
Type Swaging:	Full
Gauge:	050” (1.3mm)
Screw Size:	#4
Pack:	2,000/case
	Specify finish when ordering.

Part Number: H03-03970

Height:	3-7/16” (87.3mm)
Open Width:	2-5/16” (58.7mm)
Type Swaging:	Full
Gauge:	050” (1.3mm)
Screw Size:	#6
Pack:	500/case
	Available in bright brass, and nickel.

Flush | Lift-Off & 3 Leaf | Import Overlay | Screen & Pivot

Terry™ Overlay Hinges

This TERRY™ five-knuckle institutional hinge was designed and manufactured to provide a quality hinge at a value price to meet the needs of today’s competitive market place. Exceeds ANSI/BHMA 156.9 Grade 1 requirements. Hospital tips, 2-3/4” hinge height, 270° opening angle. All mounting holes are countersunk for #8 flat head screws.

Part Number: 74

Side Panel:	3/4” (19mm)
Door Thickness:	3/4” (19mm)
Door Overlay:	15/32” (11.9mm)
Gauge:	.090” (2.3mm)
Hole Pattern:	32mm centers with 37mm setbackpanel
Finishes:	Plated dull chrome — 26D Chrome (powder coat) — CPC Black (powder coat) - BL
Pack:	100/case, cell packed

Download Application Drawing

Download ANSI Test Data

Part Number: 76

Side Panel:	3/4” (19mm)
Door Thickness:	13/16” (20.6mm)
Door Overlay:	15/32” (11.9mm)
Gauge:	.090” (2.3mm)
Hole Pattern:	32mm centers with 37mm setback
Finishes:	Plated dull chrome — 26D Chrome (powder coat) — CPC Black (powder coat) - BL
76SS	.090” Type 304 Stainless Steel
Pack:	100/case, cell packed
