HINGES / CASEWORK HARDWARE – WIRE DOORS

Header Wire Doors 2

Wire Doors

RPC wire doors are suitable for music room, instrument and uniform storage as well as other commercial applications. Choose from RPC’s wide selection of standard size wire doors. We can also supply doors to meet your custom size requirements. RPC can match your standard or custom color choice using a durable powder coat finish.

The door frame wire is 5/16” in diameter. Vertical door wires are 3/16” in diameter and have beveled ends to produce a clean, finished look. Wire doors are supplied complete with 5-knuckle hinges, a hasp welded to the doorframe and a label holder welded to the vertical wires. A mating Cabinet Hasp – Inset (No. 2102) is included with each door. A No. 2103 Cabinet Hasp – Onset, may be substituted for use in onset applications.

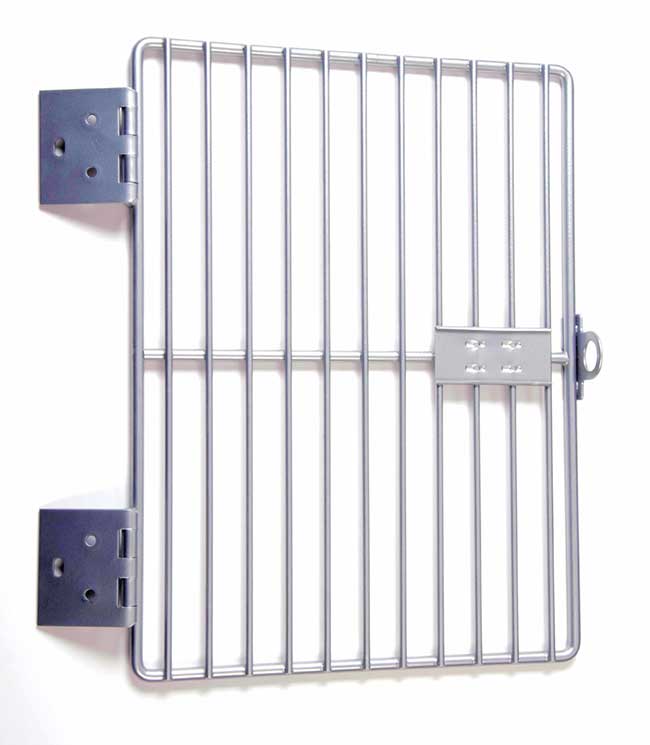

RPC Wire Doors

Stay Close Wire Door Latch

RPC now offers an enhanced stay close wire door latch option. The cabinet latch and door strike are constructed of 13 gauge steel and are available in a bright chrome finish. This system allows the doors to be used in either a right or left hand application. The contour of the latch allows it to travel over the hasp until it falls into a positive locked position. This latching arrangement is available for both solid and wire grille doors. For security, the door can be locked with a padlock. Ordering Information: To order wire doors with the Stay Close latch feature, add an “S” after the standard wire door part number (i.e., No. 2022S). The mating latch (left or right handed) will be included in your order.

RPC Wire Door latches

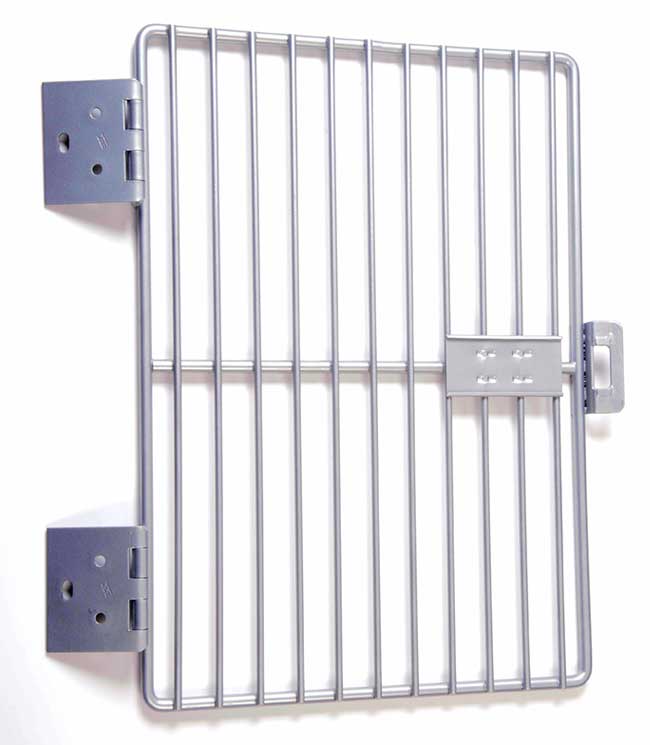

RPC Wire door photo with latch
RPC Wire door drawing

2022

Type:A
Door width in. (mm):7.40” (188mm)
Door height in. (mm):15.67” (398mm)
Hinge location in. (mm):2.83” (72mm)
Distance between outside hinges:10.00” (254mm)
Centerline location:7.84” (199mm)
Number of Hinges:2

2024

Type:B
Door width in. (mm):11.77” (299mm)
Door height in. (mm):15.67” (398mm)
Hinge location in. (mm):2.83” (72mm)
Distance between outside hinges:10.00” (254mm)
Centerline location:7.84” (199mm)
Number of Hinges:2

2026

Type:C
Door width in. (mm):24.88” (632mm)
Door height in. (mm):26.30” (668mm)
Hinge location in. (mm):2.83” (72mm)
Distance between outside hinges:20.64” (524mm)
Centerline location:13.15” (334mm)
Number of Hinges:2

2028

Type:D
Door width in. (mm):24.88” (632mm)
Door height in. (mm):39.61” (1006mm)
Hinge location in. (mm):2.83” (72mm)
Distance between outside hinges:33.95” (862mm)
Centerline location:19.80” (503mm)
Number of Hinges:3

2030

Type:E
Door width in. (mm):22.83” (580mm)
Door height in. (mm):79.45” (2018mm)
Hinge location in. (mm):4.09” (104mm)
Distance between outside hinges:71.27” (1810mm)
Centerline location:39.73” (1009mm)
Number of Hinges:3

2031

Type:E
Door width in. (mm):22.83” (580mm)
Door height in. (mm):79.45” (2018mm)
Hinge location in. (mm):4.09” (104mm)
Distance between outside hinges:71.27” (1810mm)
Centerline location:39.73” (1009mm)
Number of Hinges:3

2032

Type:F
Door width in. (mm):24.88” (632mm)
Door height in. (mm):79.45” (2018mm)
Hinge location in. (mm):4.09” (104mm)
Distance between outside hinges:71.27” (1810mm)
Centerline location:39.73” (1009mm)
Number of Hinges:3

2379

Door width in. (mm):22.83” (580mm)
Door height in. (mm):39.61” (1006mm)
Hinge location in. (mm):2.83” (72mm)
Distance between outside hinges:33.95” (862mm)
Centerline location:19.80” (503mm)
Number of Hinges:3

2742

Door width in. (mm):22.83” (580mm)
Door height in. (mm):39.61” (1006mm)
Hinge location in. (mm):2.83” (72mm)
Distance between outside hinges:33.95” (862mm)
Centerline location:19.80” (503mm)
Number of Hinges:3

2378

Door width in. (mm):22.83” (580mm)
Door height in. (mm):26.30” (668mm)
Hinge location in. (mm):2.83” (72mm)
Distance between outside hinges:20.64” (524mm)
Centerline location:13.15” (334mm)
Number of Hinges:2

2704

Door width in. (mm):22.83” (580mm)
Door height in. (mm):26.30” (668mm)
Hinge location in. (mm):2.83” (72mm)
Distance between outside hinges:20.64” (524mm)
Centerline location:13.15” (334mm)
Number of Hinges:2

2020

Door width in. (mm):7.40” (188mm)
Door height in. (mm):39.61” (1006mm)
Hinge location in. (mm):2.83” (72mm)
Distance between outside hinges:33.95” (862mm)
Centerline location:19.80” (503mm)
Number of Hinges:2

2384

Door width in. (mm):7.40” (188mm)
Door height in. (mm):26.30” (668mm)
Hinge location in. (mm):2.83” (72mm)
Distance between outside hinges:20.64” (524mm)
Centerline location:13.15” (334mm)
Number of Hinges:2

Applications for Standard Wire Doors

Typical wire door cabinet dimension and design configurations are shown below. Contact RPC application engineering with questions or special requirements.

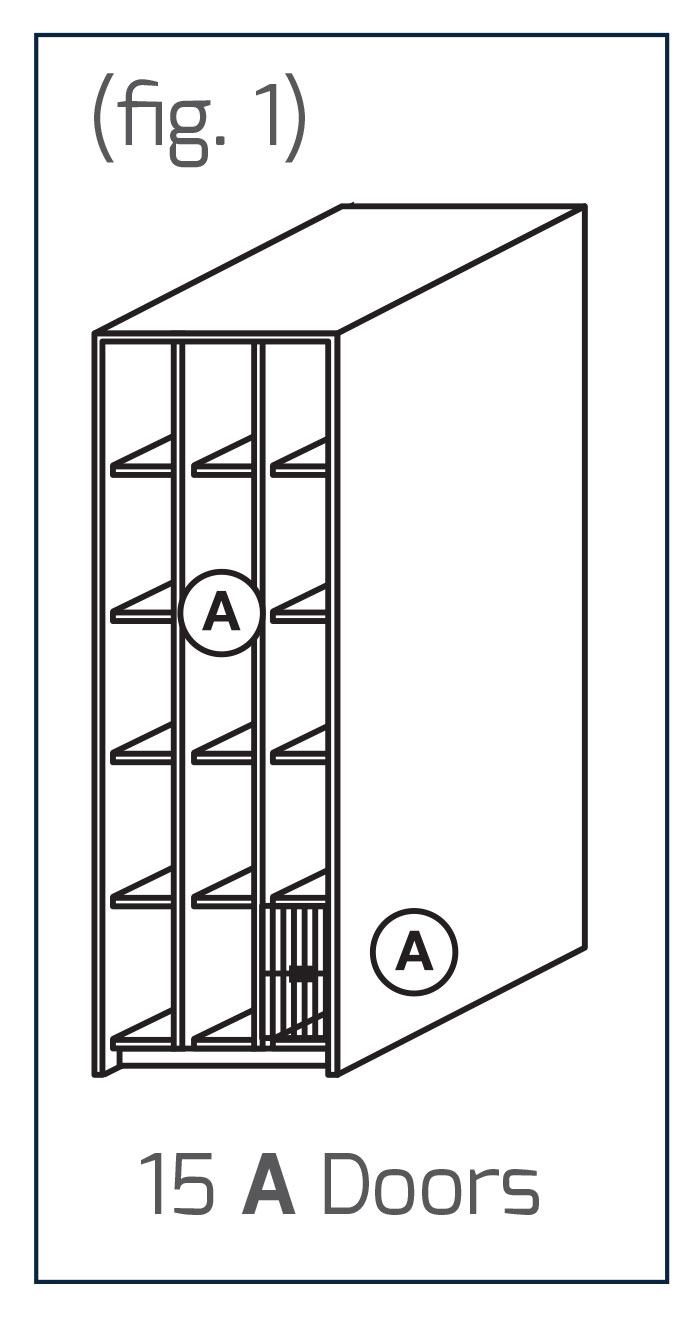

RPC wire door configuration fig 1

3 compartments wide inside dimension = 8.00” (203.2mm)
5 compartments high inside dimension = 14.85” (377.2mm)

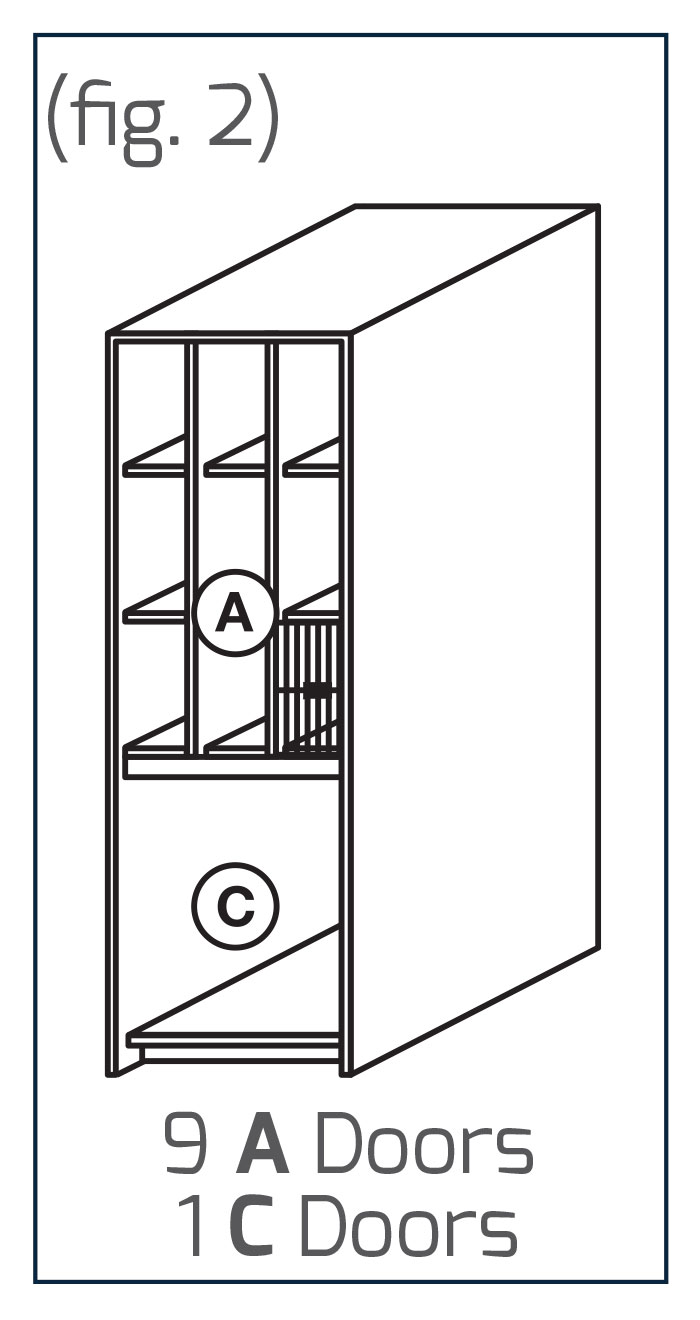

RPC wire door configuration fig 2

3 compartments wide inside dimension = 8.00” (203.2mm)
3 (top) compartments high inside dimension = 14.85” (377.2mm)
1 compartment high inside dimension = 25.67” (652mm)
1 spacer, recessed approx. 1”, 5.03” high (25.4mm, 127.8mm)

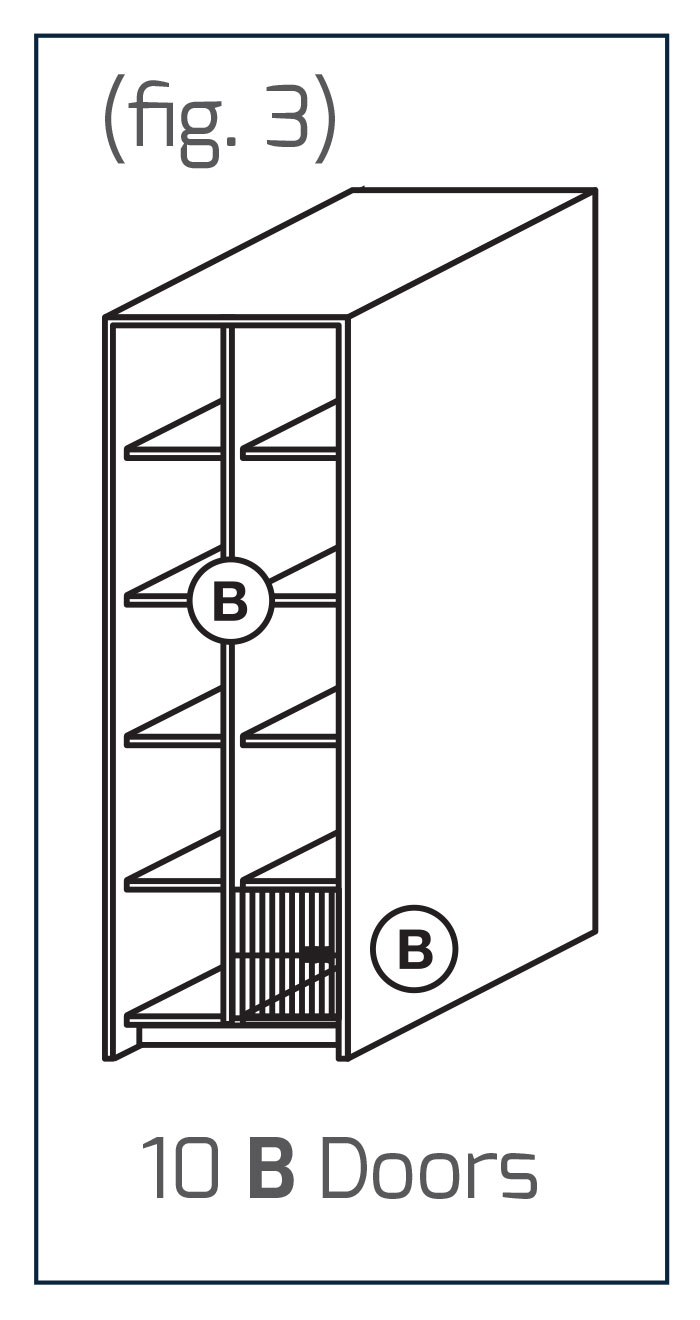

RPC wire door configuration fig 3

2 compartments wide inside dimension = 12.375” (314.3mm)
5 compartments high inside dimension = 14.85” (377.2mm)

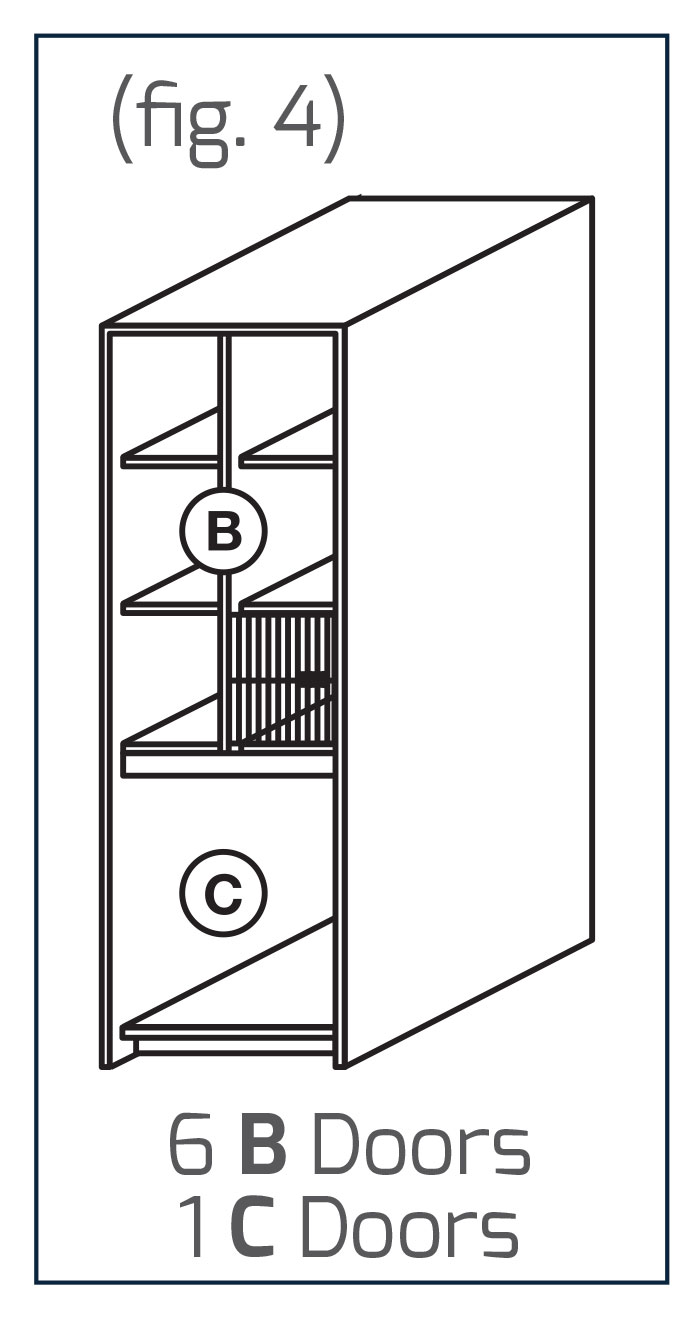

RPC wire door configuration fig 4

2 compartments wide inside dimension = 12.375” (314.3mm)
3 (top) compartments high inside dimension = 14.85” (377.2mm)
1 compartment high inside dimension = 25.67” (652mm)
1 spacer, recessed approx. 1”, 5.03” high (25.4mm, 127.8mm)

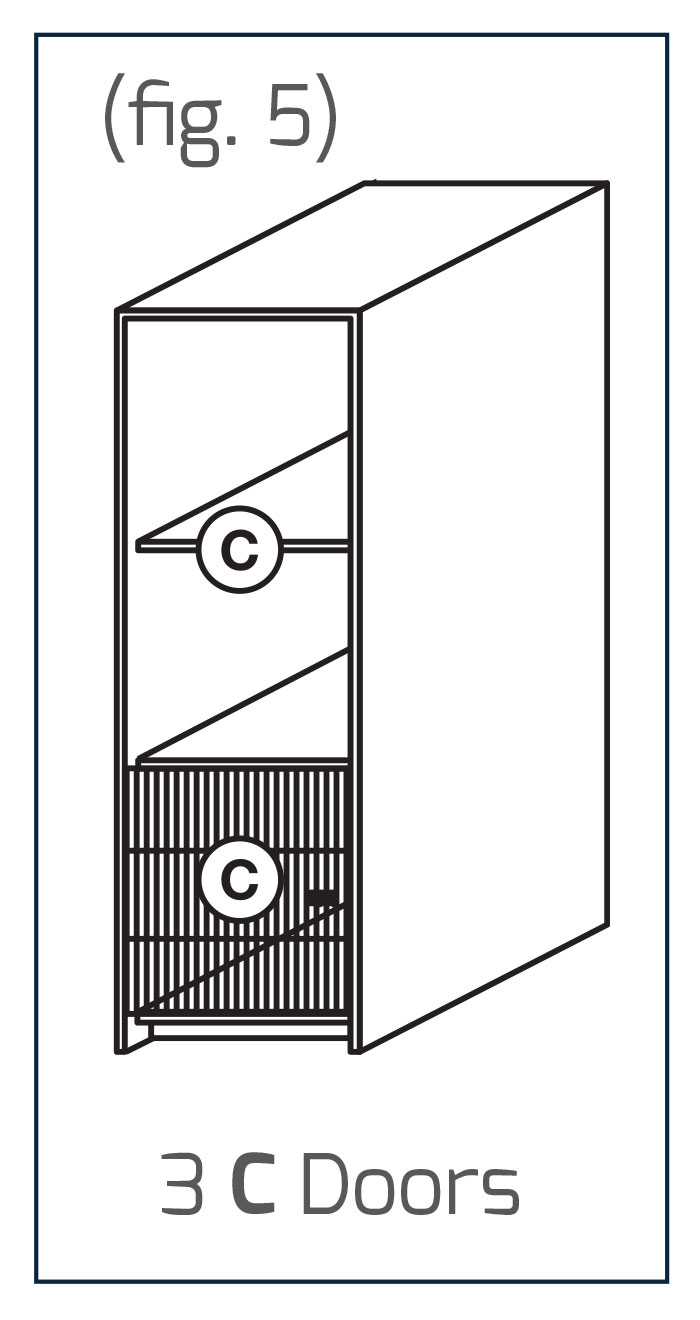

RPC wire door configuration fig 5

1 compartment wide inside dimension = 25.50” (647mm)
3 compartments high inside dimension = 25.67” (652mm)

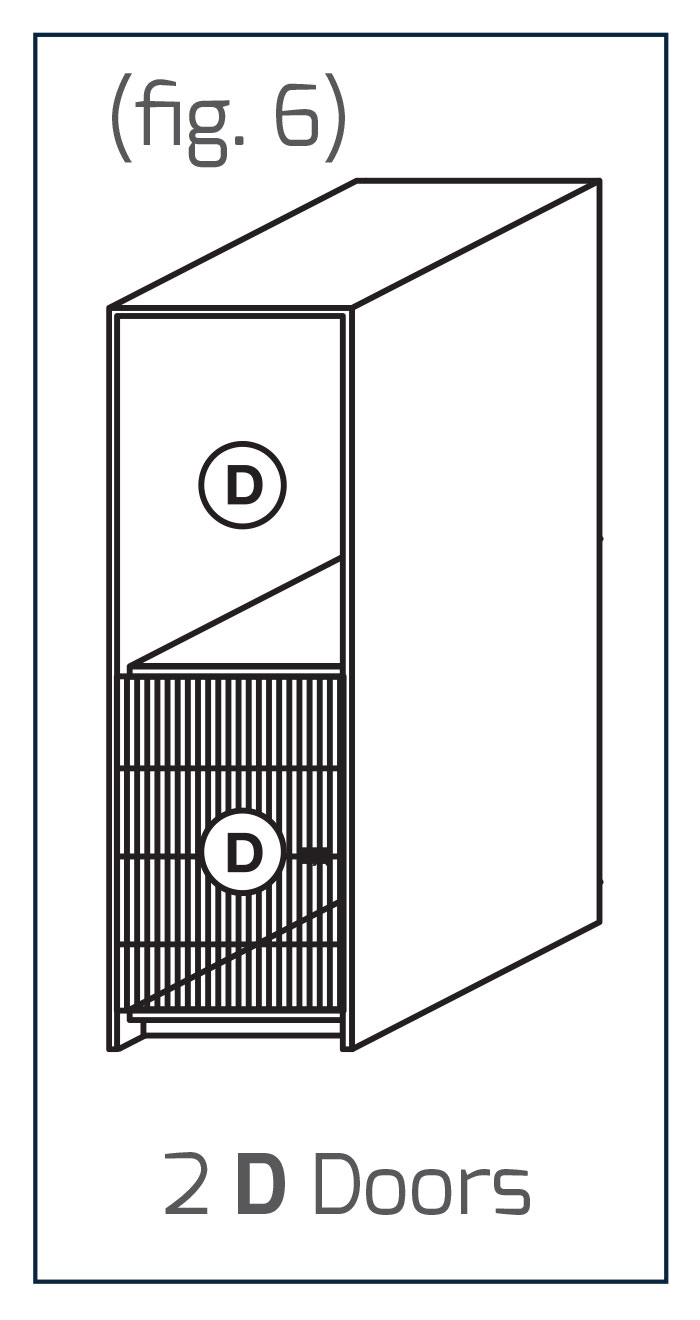

RPC wire door configuration fig 6

1 compartment wide inside dimension = 25.50” (647mm)
2 compartments high inside dimension = 38.63” (981.2mm)

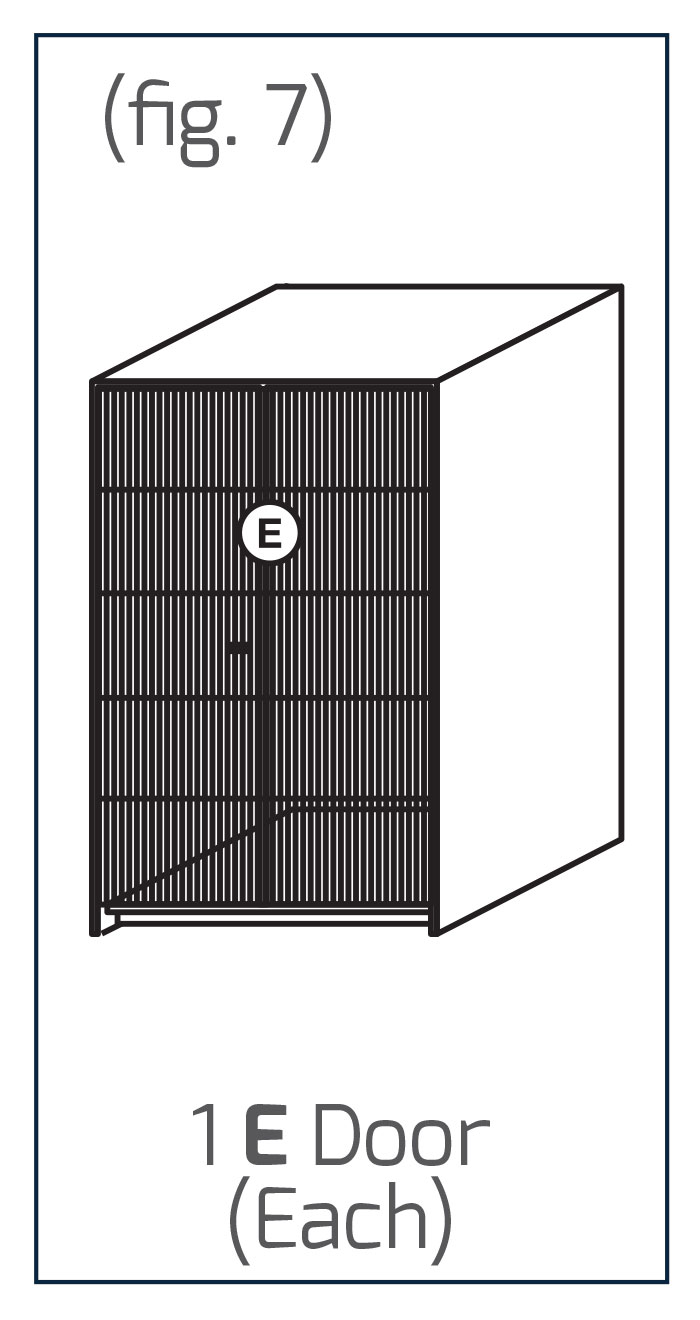

RPC wire door configuration fig 7

Cabinet (outside dm): = 48”w x 30”d x 84”h
(1219.2mm x 762mm x 2133.6mm)
Toe Kick: 4” (101.5mm) from floor to bottom of shelf, recessed
approx. 3” (76.2mm)
Vertical Members = 3/4” thick (19.1mm)
Top Horizontal Member = 3/4” thick (19.1mm)
Shelf 1” (25.4mm) thick, recessed approx. 1” (25.4mm)
1 compartment wide inside dimension = 46.50” (1118mm)
1 compartment high inside dimension = 78.25” (1987.6mm)

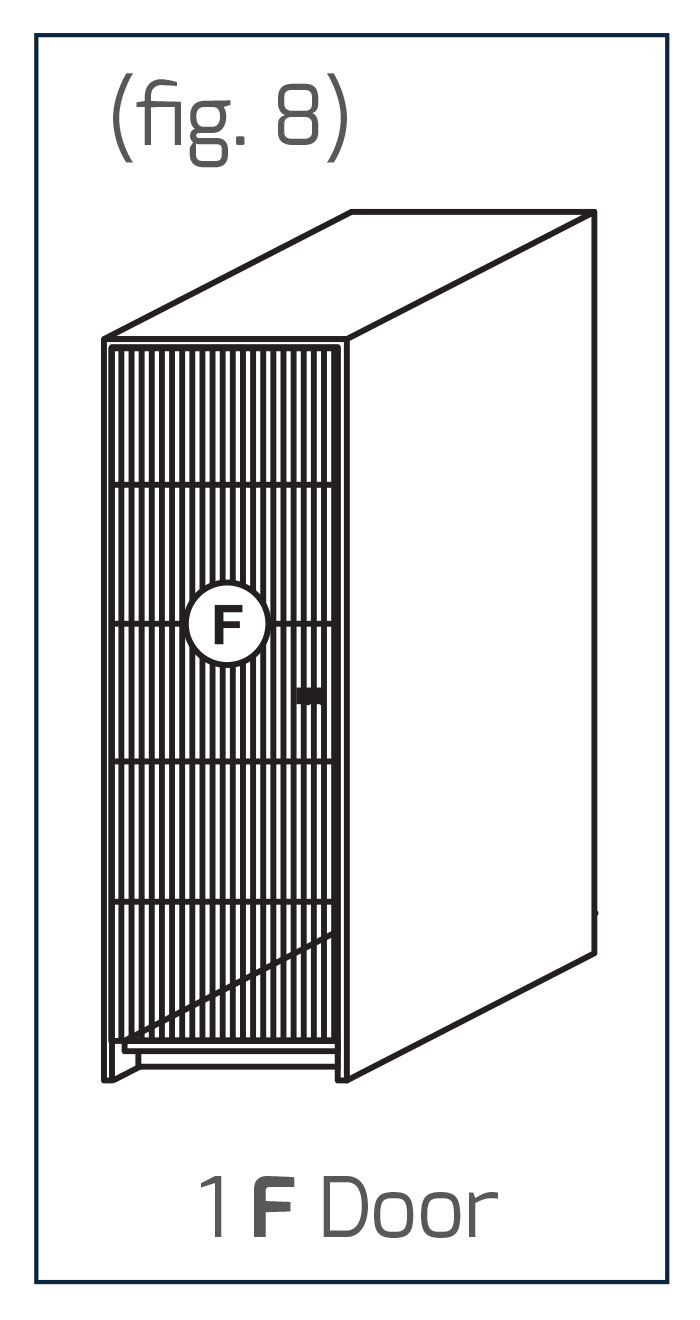

RPC wire door configuration fig 8

1 compartment wide inside dimension = 25.50” (647.7mm)
1 compartment high inside dimension = 78.25” (1987.6mm)

Cabinets for Standard Wire Doors

Cabinet:27” w x depth x 84” h, w/ 4” toe kick
Outside Dimensions:(685mm x depth x 2134mm, w/ 101.6mm toe kick)
Vertical Members:3/4” Thick (19.1mm)
Top Horizontal Member:3/4” Thick (19.1mm)
Shelves:1” (25.4mm) Thick, recessed

Calculate Wire Doors for Non-Standard Cabinets

Door Width*: inside compartment opening minus 9/16” (14.2mm)
Door Height: inside compartment opening plus 23/32” (18.3mm)
*If the inside compartment opening is greater than 36-9/16” (928.6mm) in width, two doors will be required, or if double compartment doors are desired, calculate the doorwidth as follows: Inside compartment opening minus 27/32” (21.4mm) divided by 2.

Door Hardware

Hardware for use on cabinet side panels and solid doors, and for use on wire doors.
RPC offers wood door hardware to match the mounting configuration also used on wire door cabinet designs such as the 2107 hinge and cabinet door hasps shown here.

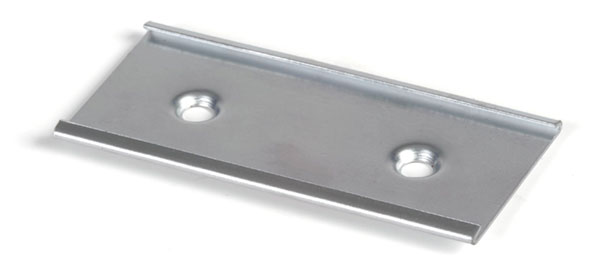

Part Number: 2101
Wood Door Plate Holder

Wood Door Plate Holder
Side Panel:3-3/16” wide x 1-1/2” high
Specify finish when ordering.

Part Number: 2102
Inset Cabinet Hasp

Inset Cabinet Hasp
Height (A):63/64” (25mm)
Distance Between Holes (B):1-37/64” (40mm)
Specify finish when ordering.

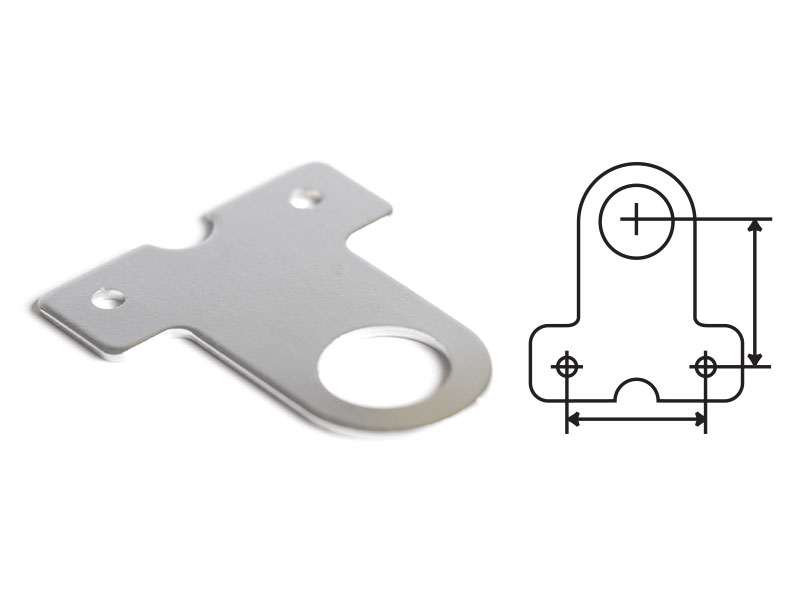

Part Number: 2103
Onset Cabinet Hasp

Onset Cabinet Hasp
Height (A):1-21/32” (42mm)
Distance Between Holes (B):1-37/64” (40mm)
Specify finish when ordering.

Part Number: 2104
Onset Solid Door Hasp

Onset Solid Door Hasp
Height (A):1-17/32” (34mm)
Distance Between Holes (B):1-37/64” (40mm)
Mounting Hole Location (C):1-1/2” (38.2mm)
Specify finish when ordering.

Part Number: 2105
Cabinet Hasp for Overlay Solid Doors

Cabinet Hasp for Overlay Solid Doors
Height (A):1-1/2” (38.2mm)
Distance Between Holes (B):1-37/64” (40mm)
Mounting Hole Location (C):1” (25.4mm)
Overlay:35/64” (14mm)
Specify finish when ordering.

Part Number: 2106
Door Plate

Door Plate
Size:1-37/64” (40mm) x 2-23/64” (60mm)
Vertical Slot:10mm x 40mm
Specify finish when ordering.

Part Number: 2801-26B
Right Hand Cabinet Latch

Right Hand Cabinet Latch
Height (A):1-5/8” (41.3mm)
Distance Between Holes (B):1-25/32” (45mm)
Mounting Hole Location (C):2-1/4” (57.2mm)
Available bright chrome plated only.

Part Number: 2802-26B
Left Hand Cabinet Latch

Left Hand Cabinet Latch
Height (A):1-5/8” (41.3mm)
Distance Between Holes (B):1-25/32” (45mm)
Mounting Hole Location (C):2-1/4” (57.2mm)
Available bright chrome plated only.

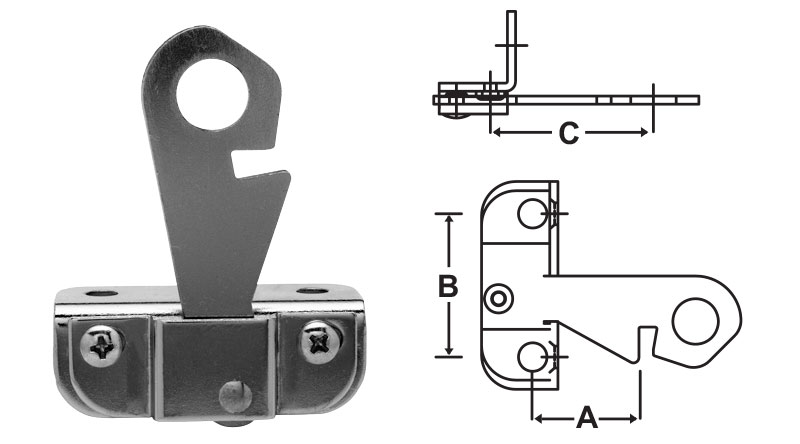

Part Number: 2804-26B
Double Solid Door Latch

Double Solid Door Latch
Height (A):3/4” (19.1mm)
Distance Between Holes (B):1-37/64” (40mm)
Mounting Hole Location (C):1/2” (12.7mm)
Available bright chrome plated only.

Part Number: 2813-26B
Double Solid Strike Plate

Double Solid Strike Plate
Height (A):29/32” (23mm)
Distance Between Holes (B):1-37/64” (40mm)
Mounting Hole Location (C):21/64” (8.4mm)
Available bright chrome plated only.

Part Number: 2814-26B
Thru Door Strike Plate for 13/16” Door

Thru Door Strike Plate for 13/16” Door
Dimension:2-3/8” (60mm) x 1-9/16” (40mm)
Distance Between Holes:1-37/64” (40mm)
Mounting Hole Location (C):1-1/16” (27mm)
Available bright chrome plated only.

Finishes

RPC’s in-house powder coating system allows us to match colors to meet your color specification. Our powder coating process provides you with a durable, epoxy-based finish.

Finish Codes: To simplify manufacturing control, RPC has reviewed and consolidated its finish offerings into Standard and Special colors. Standard colors will be stocked as noted for a given product.

Disclaimer:
Please note all finish swatches below are for web viewing purposes only. They are not intended to be exact replications of the finish. Consult factory for finish samples for an accurate representation.

Standard Powder Coat Colors
1D Gloss Black
23 Matte Black
E51 Gloss White
E47 Beige
E48 Dove Grey
P28 Chrome

Call for special color needs.

Warranty

Product Guarantee

Rockford Process Control warrants all Institutional Casework Products shipped to be free of defects in materials and workmanship.

Limited Warranty

Rockford Process Control, Inc. (RPC) warrants its Hinges and hardware against defects in material and workmanship for a period of twelve (12) months from the date of shipment.

RPC will send the original consumer purchaser, without charge, a new RPC Hinge to replace any defective RPC Hinge subject to this warranty. RPC specifically does not warrant removal of the defective Hinge or installation of a new Hinge. This warranty does not cover Hinges that have been incorrectly installed, exposed to excessive loads or abuse in any way. This warranty is a warranty of hardware replacement only. No other warranty is expressed or implied.
