HINGES / CASEWORK HARDWARE – PULLS

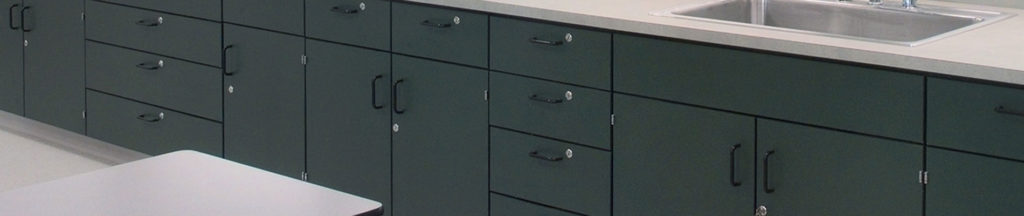

Header Pulls 2 1

Pulls

TERRY pulls are available with 4” or 96mm mounting hole centers. They are brushed stainless steel or carbon steel with a powder coat finish or dull chrome plating. Pulls use two #8-32 machine screws which are not provided.

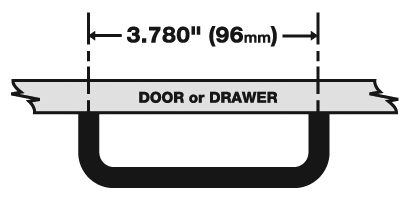

Pulls LineArt2
Pulls LineArt1

Part Number: P604

RPC pull 604, 604SS
Material Diameter:5/16” (8mm)
On Center Hole Spacing:4” (101.6mm)
Protrusion:1-1/4” (31.8mm)
Pack:100/case, cell packed
Finish:Chrome plated or powder coat.

Part Number: P604SS

RPC pull 604, 604SS
Material Diameter:5/16” (8mm)
On Center Hole Spacing:4” (101.6mm)
Protrusion:1-1/4” (31.8mm)
MaterialType 304 stainless steel
Pack:50/case, cell packed

Part Number: P4604ERSS

RPC pull 604, 604SS
Material Diameter:5/16” (8mm)
On Center Hole Spacing:4” (101.6mm)
Protrusion:1-1/4” (31.8mm)
MaterialType 304 stainless steel
4” OC mounting holes with longer
offset. Handle protrudes 1.44” for
greater clearance for ADA applications.
Pack:50/case, cell packed

Part Number: P605

RPC pull 605, 605SS
Material Diameter:5/16” (8mm)
On Center Hole Spacing:3-25/32” (96mm)
Protrusion:1-1/4” (31.8mm)
Pack:100/case, cell packed
Finish:Chrome plated or powder coat.

Part Number: P605SS

RPC pull 605, 605SS
Material Diameter:5/16” (8mm)
On Center Hole Spacing:3-25/32” (96mm)
Protrusion:1-1/4” (31.8mm)
Material:Type 304 stainless steel
Pack:100/case, cell packed

Warranty

Product Guarantee

Rockford Process Control warrants all Institutional Casework Products shipped to be free of defects in materials and workmanship.

Limited Warranty

Rockford Process Control, Inc. (RPC) warrants its Hinges and hardware against defects in material and workmanship for a period of twelve (12) months from the date of shipment.

RPC will send the original consumer purchaser, without charge, a new RPC Hinge to replace any defective RPC Hinge subject to this warranty. RPC specifically does not warrant removal of the defective Hinge or installation of a new Hinge. This warranty does not cover Hinges that have been incorrectly installed, exposed to excessive loads or abuse in any way. This warranty is a warranty of hardware replacement only. No other warranty is expressed or implied.
