HINGES / CASEWORK HARDWARE – INSTITUTIONAL HINGES

Header Institutional Hinge 2 1

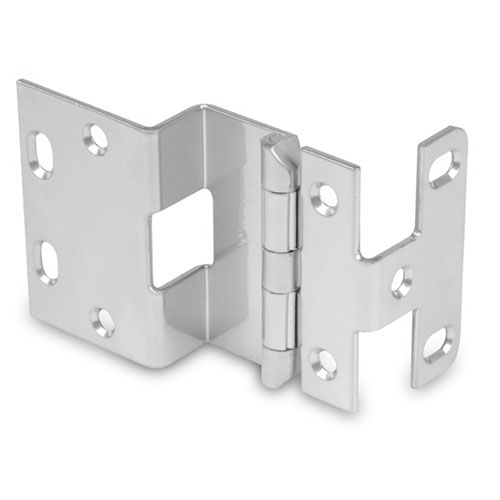

The “Rockford Hinge” – Five Knuckle Overlay Hinges

RPC hinges have been the industry standard for five-knuckle hinges for over 75 years! They exceed ANSI/BHMA 156.9 Grade 1 requirements. Hospital tips, 2-3/4” height, 270° opening angle, drilled knuckle ID with Teflon coated pins. All mounting holes are countersunk for #8 flat head screws.

Part Number: 374

Side Panel:3/4” (19mm)
Door Thickness:3/4” (19mm)
Hinge Overlay:23/32” (18.3mm)
Door Overlay:15/32” (11.9mm)
Gauge: .095” (2.4mm)
Hole Pattern:32mm centers with 37mm setback
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 376

Side Panel:3/4” (19mm)
Door Thickness:13/16” (20.6mm)
Hinge Overlay:23/32” (18.3mm)
Door Overlay:15/32” (11.9mm)
Gauge: .095” (2.4mm)
Hole Pattern:32mm centers with 37mm setback
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 376SS

Side Panel:3/4” (19mm)
Door Thickness:13/16” (20.6mm)
Hinge Overlay:23/32” (18.3mm)
Door Overlay:15/32” (11.9mm)
Gauge: .095” (2.4mm)
Hole Pattern:32mm centers with 37mm setback
Material:.090” Type 304 stainless steel
Pack: 50/case, cell packed

Part Number: 375

Side Panel:13/16” (20.6mm)
Door Thickness:13/16” (20.6mm)
Hinge Overlay:23/32” (18.3mm)
Door Overlay:17/32” (13.5mm)
Gauge: .095” (2.4mm)
Hole Pattern:32mm centers with 37mm setback
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 454

Side Panel:3/4” (19mm)
Door Thickness:3/4” (19mm)
Hinge Overlay:23/32” (18.3mm)
Door Overlay:15/32” (11.9mm)
Gauge: .095” (2.4mm)
Hole Pattern:Side panel 32mm centers with 37mm setback, door wing holes 45mm on center
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 455

Side Panel:13/16” (20.6mm)
Door Thickness:13/16” (20.6mm)
Hinge Overlay:23/32” (18.3mm)
Door Overlay:17/32” (13.5mm)
Gauge: .095” (2.4mm)
Hole Pattern:Side panel 32mm centers with 37mm setback, door wing holes 45mm on center
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 456

Side Panel:3/4” (19mm)
Door Thickness:13/16” (20.6mm)
Hinge Overlay:23/32” (18.3mm)
Door Overlay:15/32” (11.9mm)
Gauge: .095” (2.4mm)
Hole Pattern:Side panel 32mm centers with 37mm setback, door wing holes 45mm on center
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 846

Side Panel:3/4” (19mm)
Door Thickness:13/16” (20.6mm)
Hinge Overlay:23/32” (18.3mm)
Gauge: .095” (2.4mm)
Hole Pattern:Horizontal adjustment on side panel
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 848

Side Panel:3/8” (9.5mm)
Door Thickness:3/4” (19mm)
Hinge Overlay:11/32” (8.7mm)
Door Overlay:1/8” (3.2mm)
Gauge: .095” (2.4mm)
Hole Pattern:Staggered side panel mounting holes, can be used back-to-back on shared 3/4” side panel
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 849

Side Panel:3/8” (9.5mm)
Door Thickness:13/16” (20.6mm)
Hinge Overlay:11/32” (8.7mm)
Door Overlay:1/8” (3.2mm)
Gauge: .095” (2.4mm)
Hole Pattern:Staggered side panel mounting holes, can be used back-to-back on shared 3/4” side panel
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 853

Side Panel:5/8” (15.9mm)
Door Thickness:13/16” (20.6mm)
Hinge Overlay:19/32” (15.1mm)
Door Overlay:11/32” (8.7mm)
Gauge: .095” (2.4mm)
Hole Pattern:Staggered side panel mounting holes
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 8314

Side Panel:1/2” (12.7mm)
Door Thickness:1/2” (12.7mm)
Hinge Overlay:1/2” (12.7mm)
Door Overlay:9/32” (7.1mm)
Gauge: .090” (2.3mm)
Hole Pattern:Commonly used with Phenolic Materials, 32mm centers with 37mm setback
Pack: 100/case, cell packed
Specify finish when ordering.

Part Number: 8314S

Side Panel:1/2” (12.7mm)
Door Thickness:1/2” (12.7mm)
Hinge Overlay:1/2” (12.7mm)
Door Overlay:9/32” (7.1mm)
Gauge: .090” (2.3mm)
Hole Pattern:Commonly used with Phenolic Materials, 32mm centers with 37mm setback
Material:.090” Type 304 Stainless Steel
Pack: 50/case, cell packed

Part Number: 8362

Side Panel:5/8” (15.9mm)
Door Thickness:13/16” (20.6mm)
Hinge Overlay:19/32” (15.1mm)
Door Overlay:11/32” (8.7mm)
Gauge: .095” (2.4mm)
Hole Pattern:32mm centers with 37mm setback
Pack: 100/case, cell packed
Specify finish when ordering.

Part Number: 8362S

RPC Institutional Hinge 8362
Side Panel:5/8” (15.9mm)
Door Thickness:13/16” (20.6mm)
Hinge Overlay:19/32” (15.1mm)
Door Overlay:11/32” (8.7mm)
Gauge: .095” (2.4mm)
Hole Pattern:32mm centers with 37mm setback
Material:.090” Type 304 Stainless Steel
Pack: 50/case, cell packed

Special Five Knuckle Overlay Hinges

RPC special overlay hinges will accommodate application requirements for doors with a thickness of up to 1-3/8” and side panels to 1” thick.

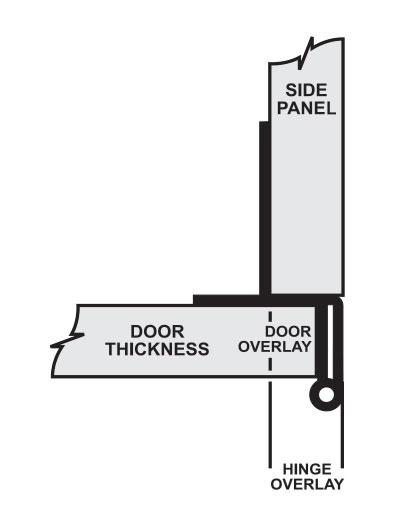

Special5KnuckleDrawing

Part Number: 388

RPC Institutional Hinge 388
Side Panel:1” (25.4mm)
Door Thickness:13/16” (20.6mm)
Hinge Overlay:1” (25.4mm)
Door Overlay:25/32” (19.8mm)
Gauge: .083” (2.1mm)
Hole Pattern:1” side panel leaf
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 844

RPC Institutional Hinge 844
Side Panel:5/8” (15.9mm)
Door Thickness:1-1/16” (27mm)
Hinge Overlay:19/32” (15.1mm)
Door Overlay:11/32” (8.7mm)
Gauge: .095” (2.4mm)
Hole Pattern:32mm centers
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 7036

RPC Institutional Hinge 7036
Side Panel:3/4” (19mm)
Door Thickness:1-3/8” (34.9mm)
Hinge Overlay:23/32” (18.3mm)
Door Overlay:15/32” (11.9mm)
Gauge: .095” (2.4mm)
Hole Pattern:1-1/4” side panel leaf
Pack:100/case, cell packed
Specify finish when ordering.

Five Knuckle Lipped Hinges

RPC five-knuckle lipped hinges are designed for use with inset doors having a rabbet depth of 3/8”. Hospital tips are standard, contact RPC regarding your special needs.

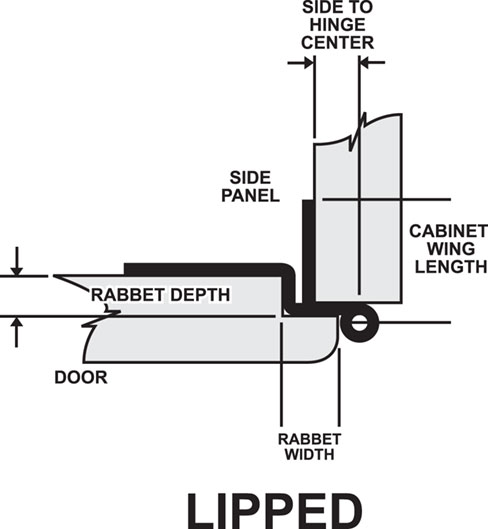

Lipped_Drawing

Part Number: 349

Rabbet Depth:3/8” (9.5mm)
Side To Hinge Center:25/64” (9.9mm)
Cabinet Wing Length:13/16” (20.6mm)
Rabbet Width:3/8” (10.3mm)
Height:2-1/2” (63.5mm)
Gauge: .072” (1.8mm)
Hole Pattern:Vertical side panel slot, horizontal door slot for
easy mounting
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 362

Rabbet Depth:3/8” (9.5mm)
Side To Hinge Center:7/16” (11.1mm)
Cabinet Wing Length: 1-31/32” (50mm)
Rabbet Width:1/2” (13.5mm)
Height:2-3/4” (69.9mm)
Gauge:.083” (2.1mm)
Hole Pattern:Horizontal mounting slots on both side panel and door
Pack:100/case, cell packed
Specify finish when ordering.

Part Number: 362SS

Rabbet Depth:3/8” (9.5mm)
Side To Hinge Center:7/16” (11.1mm)
Cabinet Wing Length: 1-31/32” (50mm)
Rabbet Width:1/2” (13.5mm)
Height:2-3/4” (69.9mm)
Gauge:.083” (2.1mm)
Hole Pattern:Horizontal mounting slots on both side panel and door
Material:.078” Type 304 Stainless Steel
Pack: 50/case, cell packed

Three Knuckle, Non-Mortise, Institutional Hinges

Hinge height: 2-3/4”, same as five-knuckle hinges
ANSI/BHMA 156.9 Grade 3 compliant

Part Number: H08-9XG60

Side Panel:3/4” (19mm)
Door Thickness:13/16” (20.6mm)
Hinge Overlay:23/32” (18.3mm)
Door Overlay:5/8” (15.9mm)
Gauge: .090” (2.3mm)
Hole Pattern:32mm centers with 37mm setback,
51mm (2”) door wing
Pack:100/case, cell packed
Specify finish when ordering.

Finishes

RPC’s in-house powder coating system allows us to match colors to meet your color specification. Our powder coating process provides you with a durable, epoxy-based finish.

Finish Codes: To simplify manufacturing control, RPC has reviewed and consolidated its finish offerings into Standard and Special colors. Standard colors will be stocked as noted for a given product.

Standard Powder Coat Colors
1D Gloss Black
23 Matte Black
E51 Gloss White
E47 Beige
E48 Dove Grey
P28 Chrome

Plated Finishes
26D Dull Chrome
26S Brushed Chrome

Call for special color needs.

Ordering Information

order-info

Part # Example: Product Type: Product Number or Model: Finish Code:

376-P28 = 376 (Model No.) P28 (Chrome Powder Coat)

Part Numbering System: Product Type and/or Model Number followed by the Finish Code and Packing Code. (Examples above.)

Minimum Order Quantity:

5-Knuckle Hinges: 100 PCs per Part Number. Case Quantity: 100 PCs, Cell Packed
Stainless Steel Hinges: 50 PCs per Part Number. Case Quantity: 50 PCs, Cell Packed
Wire Pulls: 100 PCs per Part Number. Case Quantity: 100 PCs, Cell Packed
Wire Doors: No Minimum
Gravity Locks: 100 Sets per Part Number. Bulk Pack or Polybag (1-Set per Polybag)

Material: Cold Rolled Steel and 304 Stainless Steel
Material Thickness: As noted in hinge specification sheet
Barrel Height: 2-3/4″ for Overlay Hinges, etc.
Hospital Tips: Standard on all institutional, 5-knuckle hinge products.
Opening Angle: 270° for Overlay Hinges. 180° for Lipped, Flush and Butt Hinges
Smooth Operation: Drilled knuckle IDs and machined knuckle edges.
Pin: Non-Removable Knurled Pin
Finish: Standard and Custom Powder Coating and Plating
Quality: Independent tests conducted on representative RPC hinges show that
they meet or exceed ANSI/BHMA Grade 1, Standard No. A156.9
