HINGES / CASEWORK HARDWARE – CASEWORK HARDWARE

Header Casework 2

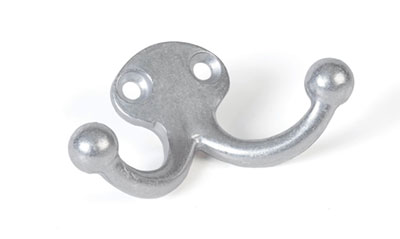

Part Number: B02-06512-A64
Double Wardrobe Hook
with Screws

RPC Double Wardrobe Hook with Screws
Length:2-1/4”” (57.2mm)
Hook Width:2-7/8” (73mm)
Base Width:1-1/2” (38.1mm)
Pack:50/carton; 500/case
Finish:Polished Aluminum

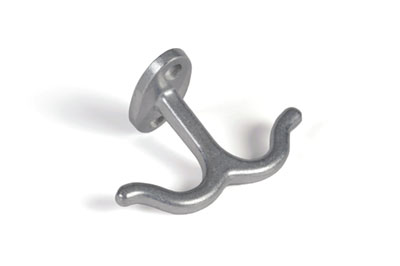

Part Number: B02-06513-A64
Double Ceiling Hook
with Screws

RPC Double Ceiling Hook with Screws
Length:2-1/4”” (57.2mm)
Hook Width:3-1/4” (82.6mm)
Base Width:1-7/8” (47.6mm)
Pack:30/carton; 300/case
Finish:Polished Aluminum

Latches & Catches

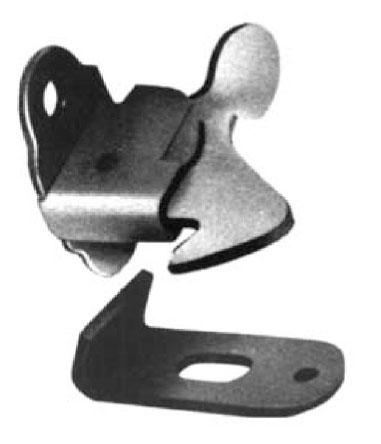

Part Number: M03-99389-17
Elbow Catch Set with
Catch & Plate

Elbow Catch Set with Catch
Length:2-1/4” (57.2mm)
Width:1-1/8” (28.6mm)
Height:1” (25.4mm)
Pack:100 sets/case
Finish:Zinc

Part Number: B03-07000
Button Catch Inside Clip

Button Catch Inside Clip
Length:5/8” (15.9mm)
Width:1-1/8” (28.6mm)
Height:1” (25.4mm)
Pack:500 case
Finish:White Zinc

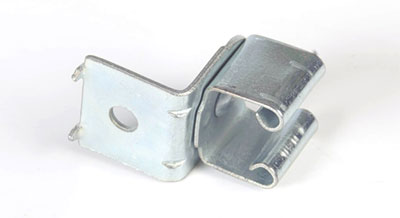

Part Number: B03-07001
Button Catch Reverse Clip

Button Catch Reverse Clip
Length:1” (25.4mm)
Width:5/8” (15.9mm)
Height:3/4” (19mm)
Pack:500 case
Finish:White Zinc

Part Number: B03-07002-17
Button For Catch

Button For Catch
Length:7/8” (22.2mm) with screw
Width:1/2” (12.7mm) diameter
Height:5/16” (7.9mm)
Pack:500 case
Finish:White Zinc

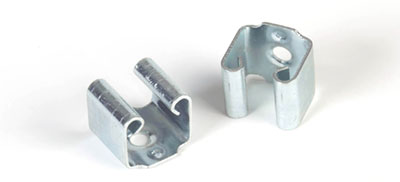

Part Number: B03-07003-17
Receiver Catch

Receiver Catch
Length:3/8” (9.5 mm)
Width:5/8” (15.9mm)
Height:1/2” (12.7mm)
Pack:7,500/case
Finish:White Zinc

Part Number: M03-00033-03
Insert Bullet Catch Set with Nail

Insert Bullet Catch Set with Nail
Diameter:1/4” (4.4mm) — M03-00033
Pack:500 sets/case
Finish:Bright Brass

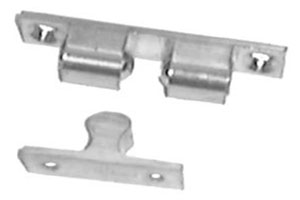

Part Number: M03-4400B-03
Double Ball Catch – Solid Brass

Double Ball Catch – Solid Brass
Length:1-45/64” (43.3mm)
Width:5/16” (7.9mm)
Height:3/8” (9.5mm)
Pack:100 sets/case
Finish:Solid Brass

Magnetic Catches

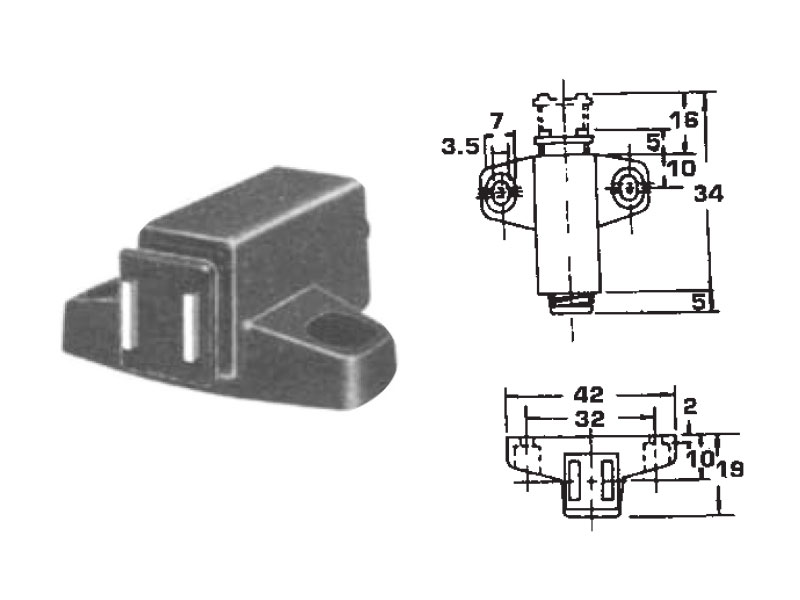

Part Number: B01-06969-55
Single Magnetic Touch Latch
with 32mm Hole Centers

Single Magnetic Touch Latch with 32mm Hole Centers
Length:1-3/4” (44.5mm)
Width:1-21/32” (42mm)
Height:3/4” (19mm)
Screw Size:#4
Pack:100/case
Finish:Black

Part Number: B01-V6931
Double Magnetic Touch Latch

Double Magnetic Touch Latch
Length:1-13/16” (46mm)
Width:2-1/4” (57.2mm)
Height:11/16” (17.5mm)
Screw Size:#4
Pack:125/case
Finish:Brown

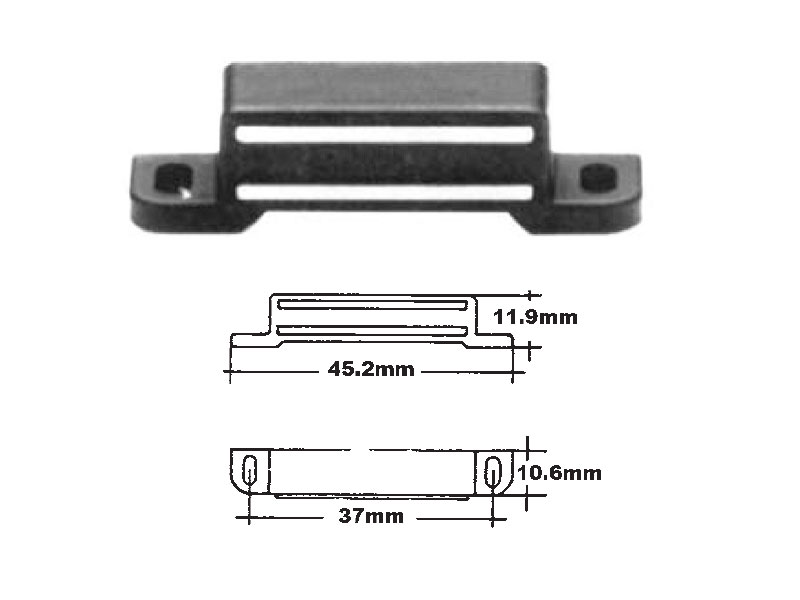

Part Number: M03-03934

Magnetic catch
Holding Power:12 lbs
Length:1-3/4” (45.2mm)
Width:13/32” (10.6mm)
Height:15/32” (11.9mm)
Screw Size:#4
Pack:300/case
Finish:White

Part Number: M03-X3921

Magnetic catch
Holding Power:8.5 lbs
Length:1-13/16” (45.8mm)
Width:19/32” (14.9mm)
Height:1/2” (13mm)
Screw Size:#4
Pack:250/case
M02-X3921:Poly bagged set with strike plate & screws.
Finish:White or Brown

Part Number: M03-03926

Magnetic catch
Holding Power:9 lbs
Length:1-7/8” (48mm)
Width:3/4” (19mm)
Height:9/16” (14.8mm)
Screw Size:#4
Pack:500/case
Finish:White or Brown
M02-03926-66:Poly bagged set with strike plate & screws.
Finish:White

Part Number: M03-03932

Magnetic catch
Holding Power:8 lbs
Length:1-21/32” (41.8mm)
Width:27/32” (21mm)
Height:23/32” (18mm)
Screw Size:#4
Pack:250/case
Finish:Brown

Part Number: M03-03923

Magnetic catch
Holding Power:8 lbs
Length:2-5/16” (51.6mm)
Width:31/32” (24.6mm)
Height:1/2” (12.3mm)
Screw Size:#4
Pack:250/case
Finish:Brown

Part Number: M03-03925

Magnetic catch
Holding Power:8 lbs
Length:2” (50mm)
Width:19/32” (20.2mm)
Height:13/32” (14.8mm)
Screw Size:#4
Pack:500/case
Finish:White

Part Number: M03-03950

Magnetic catch
Holding Power:25 lbs
Length:1-13/16” (45.9mm)
Width:63/64” (24.7mm)
Height:7/8” (21.8mm)
Screw Size:#6
Pack:50/carton — 500/case
Finish:White or Brown
M02-03950:Poly bagged set with strike plate & screws
Pack:200/case

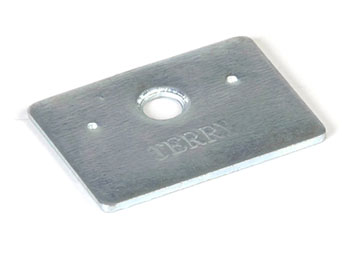

Part Number: M04-02901
Rectangular Strike Plate

Rectangular Strike Plate
Length:1-7/32” (31mm)
Width:29/32” (23mm)
Screw Size:#5
Pack:2,000/case

Gravity Locks

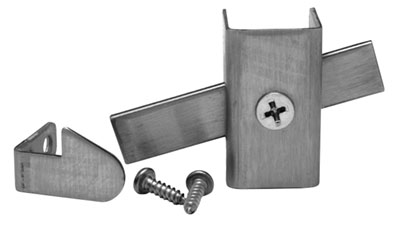

Part Number: GL01

Gravity Locks
Partition Thickness:GL01: 3/4” (19mm)
Material:Bolt, bracket and strike plate are made of brushed 304 stainless steel
Packaged:Lock, strike plate, one #9 x 2-1/2” Phillips pivot
screw, two #6 x 1/2” Phillips SMS, all screws
are bright zinc plated.
Pack:B 250 cell packed/case
Pack:P 25 poly bagged/case

Lid Supports

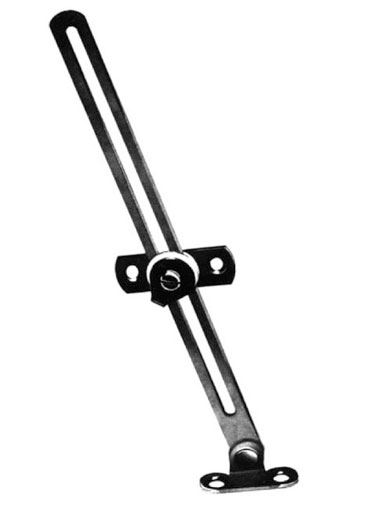

Part Number: LS3-61918-03

Lid supports
Hand:Reversible
Tension:Adjustable
Arm Length:6-1/4” (158.8mm)
Arm Width:9/16” (14.3mm)
Length Of Slot:5-1/2” (139.7mm)
Screw Size:#5
Pack:100/case
Finish:Bright Brass

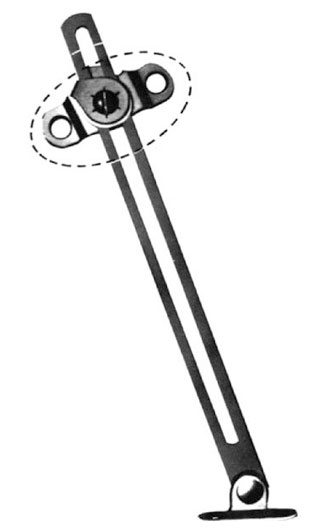

Part Number: LS3-6L919-03,
LS3-6R919-03

Lid supports
Hand:6L919 - Left, 6R919 - Right
Tension:Adjustable
Arm Length:6-1/4” (158.8mm)
Arm Width:9/16” (14.3mm)
Length Of Slot:5-1/2” (139.7mm)
Screw Size:#5
Pack:200/case
Finish:Bright Brass

Part Number: LS3-6R929-03

Lid supports
Hand:Right
Tension:Adjustable
Arm Length:5” (127mm)
Arm Width:9/16” (14.3mm)
Length Of Slot:4-11/16” (119.1mm)
Screw Size:#5
Pack:200/case
Finish:Bright Brass

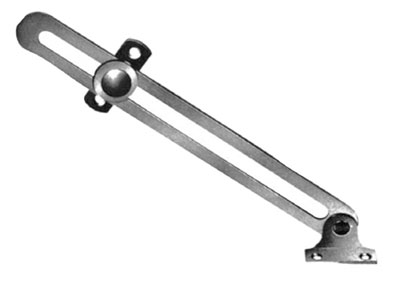

Part Number: LS3-61909-03

Lid supports
Hand:Reversible
Tension:Adjustable
Arm Length:6-3/4” (171.5mm)
Arm Width:3/4” (19mm)
Length Of Slot:6” (152.4mm)
Screw Size:#5
Pack:100/case
Finish:Bright Brass

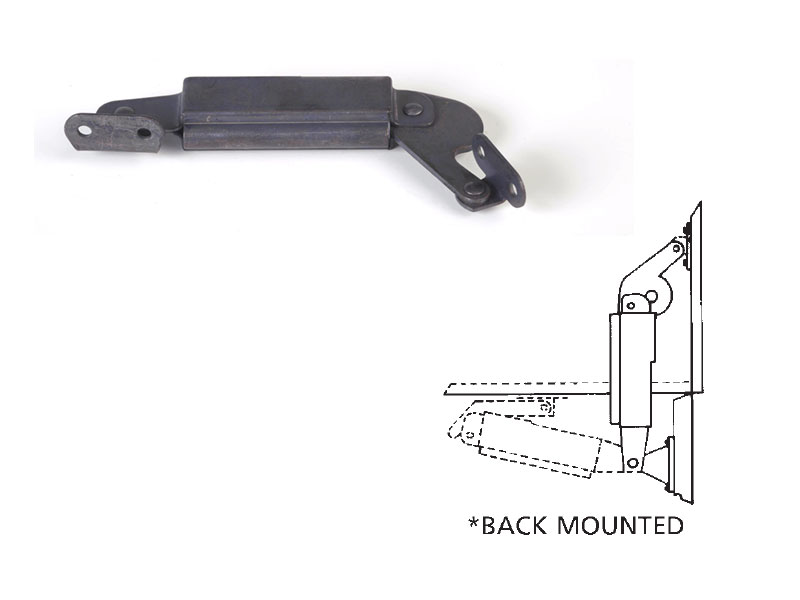

Part Number: LS6-R1575-06,
LS6-L1575-06

Lid supports
Hand:R1575 — right, L1575 - left
Tension:35 lbs
Arm Length:6” (152.4mm)
Arm Width:15/16” (23.8mm)
Screw Size:#6
Pack:100/carton — 200/case
Finish:Statuary Bronze

Pins – Shutter/Shelf

Part Number: PN9-00500-01
Shutter Pin

Shutter pins
Pin Diameter:.140” (3.6mm)
Head Diameter:.240” (6.1mm)
Full Length:1.035” (26.3mm)
Pack:15.000/case
Material:Nylon

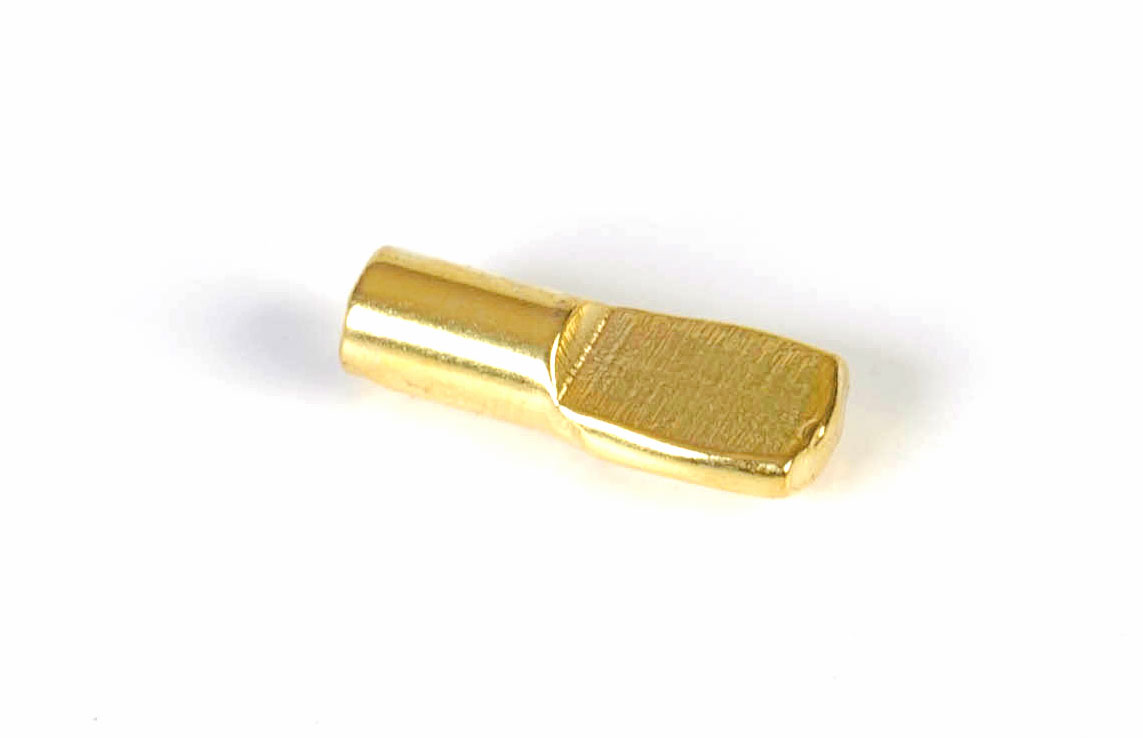

Part Number: B01-34056
Shelf Pin – Spoon Type Shelf Support

Shelf Pin – Spoon Type Shelf Support
Bore:3/16” (5mm)
Length:3/4” (19mm)
Width:5/16” (7.9mm)
Pack:1,000/case
Finish:Antique brass, bright brass or nickel

Part Number: B01-34050
Shelf Pin – Spoon Type Shelf Support

Shelf Pin – Spoon Type Shelf Support
Bore:1/4” (6.5mm)
Length:3/4” (19mm)
Width:1/2” (7.9mm)
Pack:1,000/case
Finish:Antique brass, black nickel, bright brass or nickel.

Part Number: B08-34051-14
Right Angle Shelf Rest with Quake Pin Hole

Right Angle Shelf Rest with Quake Pin Hole
Bore:1/4” (6.5mm)
Length:23/32” (18.2mm)
Width:33/64” (13.2mm)
Pack:1,000/case
Finish:NIckel

Part Number: B03-3406X-14
Right Angle Shelf Rest with Quake Pin Hole

Right Angle Shelf Rest with Quake Pin Hole
Bore:3/16” (5mm)
Length:23/32” (18.2mm)
Width:33/64” (13.2mm)
Pack:1,000/case
Finish:NIckel
